ASP.NET Page Processing

Consider the database development project developed during previous semester. A complete database design and development was carried out in previous semester project as detailed in your project report in printed form.

In addition during one of previous labs (see reference below) you were required to develop web interfaces on paper and then develop html prototypes for various functionalities of your database project mentioned as above.

Now the next task is to transform paper based and html based prototype interfaces into full scale working web forms for realization of various functionalities of your project. Ideally you are required to develop all web forms for implementing various project functionalities.

Reference: Lab 3 Q1) Consider the project database designed and implemented during previous semester i.e. Fall 2024. Its implementation was done using structured query language during previous semester. Try to recall major relations in your project database. You already have its report in printed form.

There is a need to implement a web based solution for above mentioned database. The web based solution must incorporate various functionalities of your project.

As a first step design above mentioned (i) to (v) user interfaces using paper and pencil.

You are strictly advised to refrain from using any AI tool during lab work. (0 score will be given for any such effort). Just follow codes as listed in book or as demonstrated in class from time to time.

Code Implementation

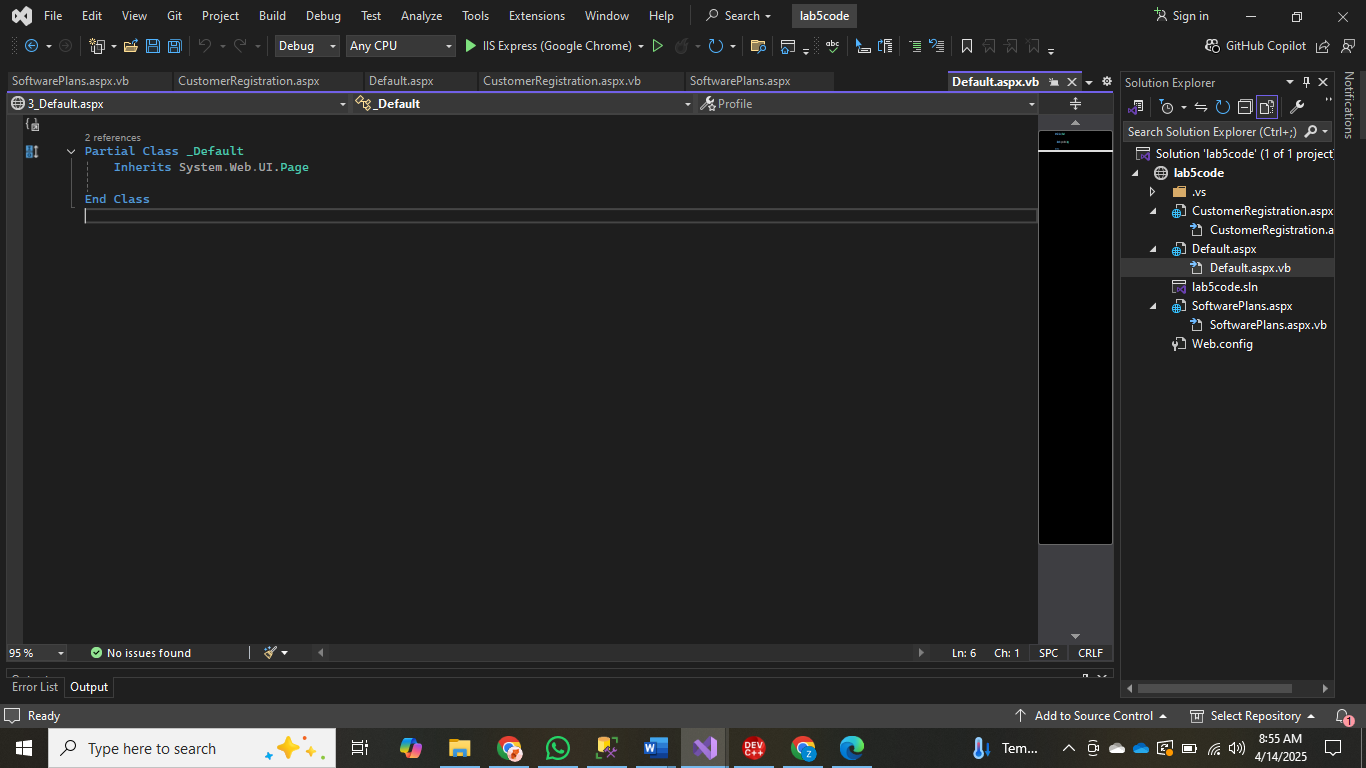

Homepage Code Behind File
Partial Class _Default
    Inherits System.Web.UI.Page

End Class

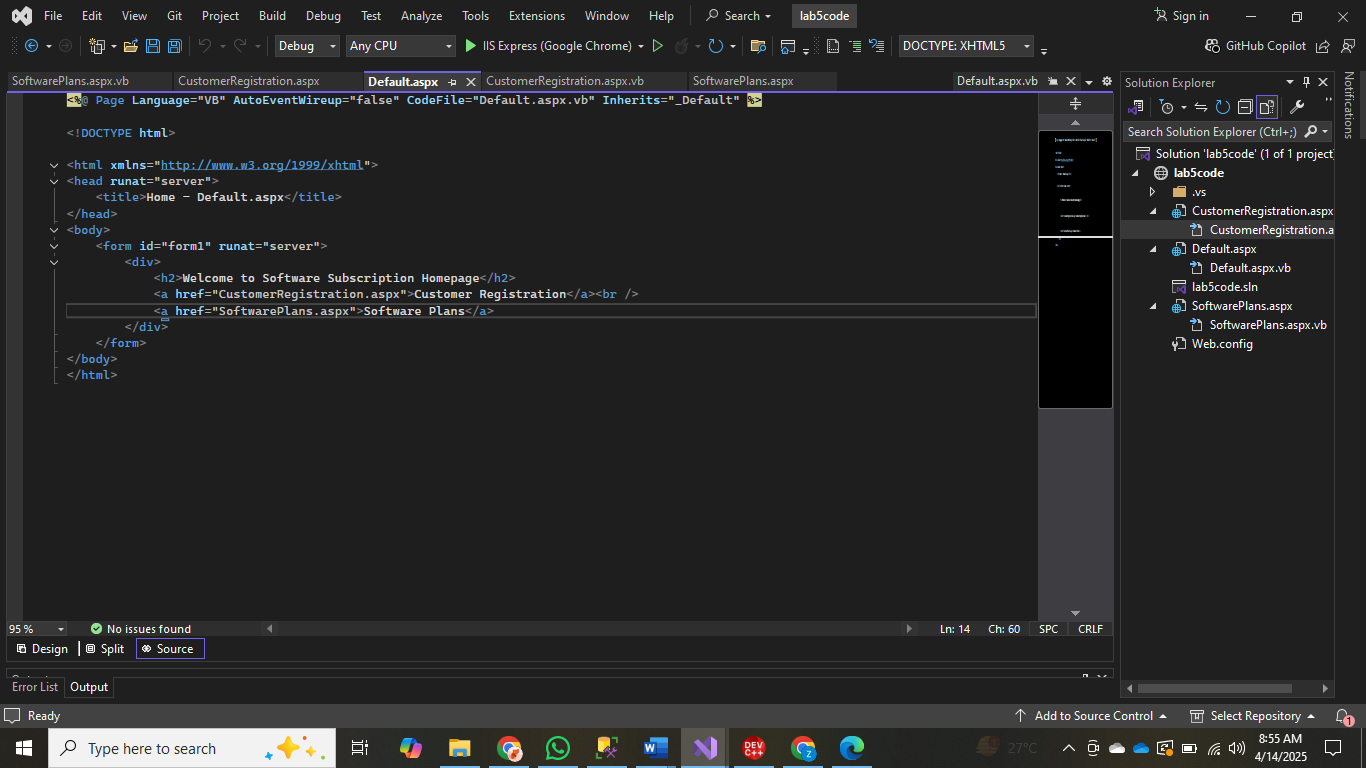

Homepage Default.aspx File
<%@ Page Language="VB" AutoEventWireup="false" CodeFile="Default.aspx.vb" Inherits="_Default" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>Home - Default.aspx</title>
</head>
<body>
    <form id="form1" runat="server">
        <div>
            <h2>Welcome to Software Subscription Homepage</h2>
            <a href="CustomerRegistration.aspx">Customer Registration</a><br />
            <a href="SoftwarePlans.aspx">Software Plans</a>
        </div>
    </form>
</body>
</html>

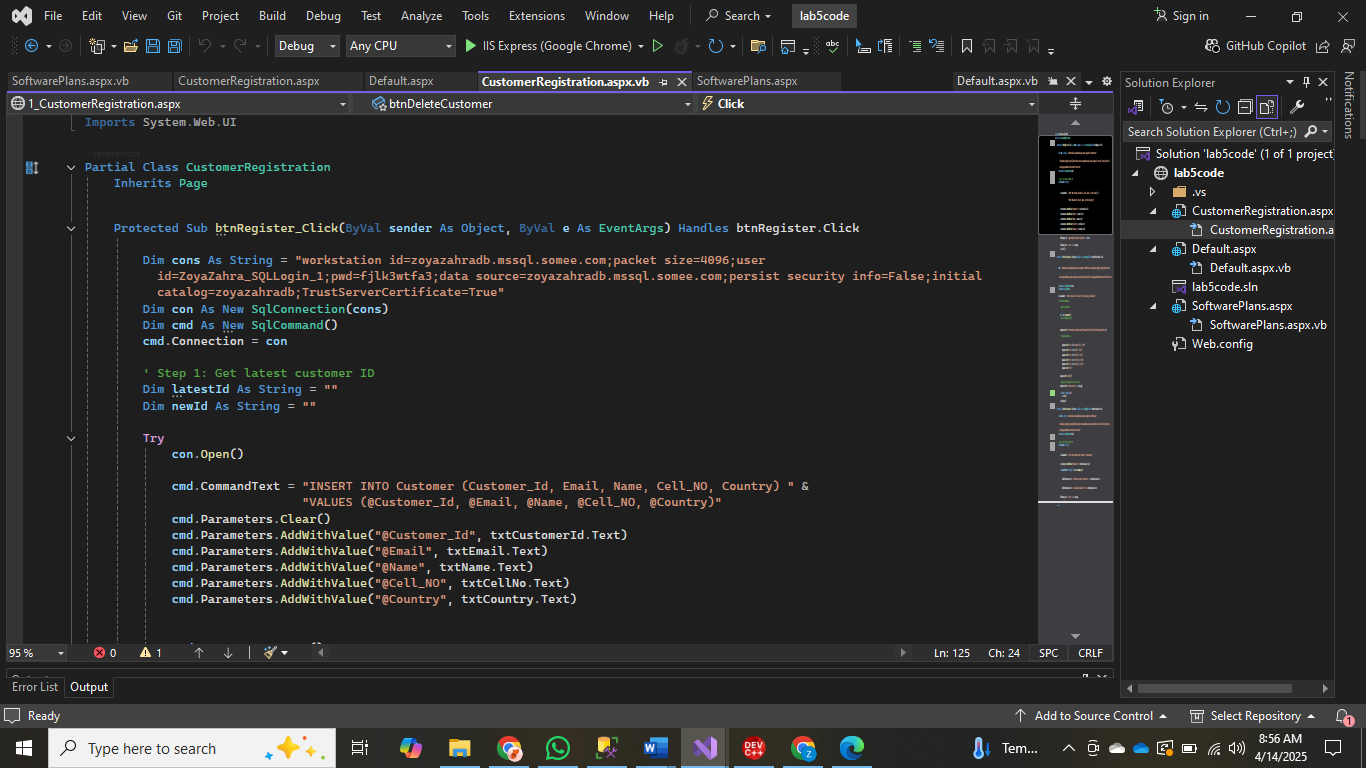

Customer Registration Code Behind File
Imports System
Imports System.Data
Imports System.Data.SqlClient
Imports System.Web.UI

Partial Class CustomerRegistration
    Inherits Page

    Protected Sub btnRegister_Click(ByVal sender As Object, ByVal e As EventArgs) Handles btnRegister.Click

        Dim cons As String = "workstation id=zoyazahradb.mssql.somee.com;packet size=4096;user id=ZoyaZahra_SQLLogin_1;pwd=fjlk3wtfa3;data source=zoyazahradb.mssql.somee.com;persist security info=False;initial catalog=zoyazahradb;TrustServerCertificate=True"
        Dim con As New SqlConnection(cons)
        Dim cmd As New SqlCommand()
        cmd.Connection = con

        ' Step 1: Get latest customer ID
        Dim latestId As String = ""
        Dim newId As String = ""

        Try
            con.Open()

            cmd.CommandText = "INSERT INTO Customer (Customer_Id, Email, Name, Cell_NO, Country) " &
                              "VALUES (@Customer_Id, @Email, @Name, @Cell_NO, @Country)"
            cmd.Parameters.Clear()
            cmd.Parameters.AddWithValue("@Customer_Id", txtCustomerId.Text)
            cmd.Parameters.AddWithValue("@Email", txtEmail.Text)
            cmd.Parameters.AddWithValue("@Name", txtName.Text)
            cmd.Parameters.AddWithValue("@Cell_NO", txtCellNo.Text)
            cmd.Parameters.AddWithValue("@Country", txtCountry.Text)


            cmd.ExecuteNonQuery()
            lblMessage.Text = "Registration successful! Customer ID: " & newId

        Catch ex As Exception
            lblMessage.Text = "Error: " & ex.Message
        Finally
            con.Close()
        End Try
    End Sub


    Protected Sub btnSeeAllCustomers_Click(sender As Object, e As EventArgs) Handles btnSeeAllCustomers.Click
        Dim cons As String
        cons = "workstation id=zoyazahradb.mssql.somee.com;packet size=4096;user id=ZoyaZahra_SQLLogin_1;pwd=fjlk3wtfa3;data source=zoyazahradb.mssql.somee.com;persist security info=False;initial catalog=zoyazahradb;TrustServerCertificate=True"

        ' Create and open the connection
        Dim con As New SqlConnection(cons)
        Dim cmd As New SqlCommand
        cmd.Connection = con
        cmd.CommandText = "SELECT Customer_id, Email, Name, Cell_NO, Country From Customer"

        ' Declare the DataReader
        Dim dr As SqlDataReader

        Try
            ' Open the connection
            con.Open()

            ' Execute the query
            dr = cmd.ExecuteReader()

            ' Read and display the data
            ' Start the table
            Response.Write("<table border='1'>")
            Response.Write("<tr><th>Customer ID</th><th>Name</th><th>Email</th><th>Cell No</th><th>Country</th></tr>")

            ' Loop through the data
            While (dr.Read())
                Response.Write("<tr>")
                Response.Write("<td>" & dr("Customer_Id") & "</td>")
                Response.Write("<td>" & dr("Name") & "</td>")
                Response.Write("<td>" & dr("Email") & "</td>")
                Response.Write("<td>" & dr("Cell_NO") & "</td>")
                Response.Write("<td>" & dr("Country") & "</td>")
                Response.Write("</tr>")
            End While

            ' End the table
            Response.Write("</table>")

        Catch ex As Exception
            ' Display error message in case of an issue
            Response.Write("An error occurred: " & ex.Message)
        Finally
            ' Cleanup
            If Not dr Is Nothing Then
                dr.Close()
            End If
            con.Close()
            cmd.Dispose()
        End Try
    End Sub

    Protected Sub btnDeleteCustomer_Click(sender As Object, e As EventArgs) Handles btnDeleteCustomer.Click

        Dim cons As String = "workstation id=zoyazahradb.mssql.somee.com;packet size=4096;user id=ZoyaZahra_SQLLogin_1;pwd=fjlk3wtfa3;data source=zoyazahradb.mssql.somee.com;persist security info=False;initial catalog=zoyazahradb;TrustServerCertificate=True"
        Dim con As New SqlConnection(cons)
        Dim cmd As New SqlCommand()
        cmd.Connection = con

        ' Step 1: Get latest customer ID
        Dim latestId As String = ""
        Dim newId As String = ""

        Try
            con.Open()

            cmd.CommandText = "Delete from customer where customer_id = @Customer_Id "
            cmd.Parameters.Clear()
            cmd.Parameters.AddWithValue("@Customer_Id", txtDeleteCustomer.Text)
            Dim rowsAffected As Integer = cmd.ExecuteNonQuery()
            If rowsAffected > 0 Then
                lblDeleteCustomer.Text = "Deletion successful! Customer ID: " & txtDeleteCustomer.Text
            Else
                lblDeleteCustomer.Text = "No customer found with ID: " & txtDeleteCustomer.Text
            End If

        Catch ex As Exception
            lblMessage.Text = "Error: " & ex.Message
        Finally
            con.Close()
        End Try

    End Sub

End Class

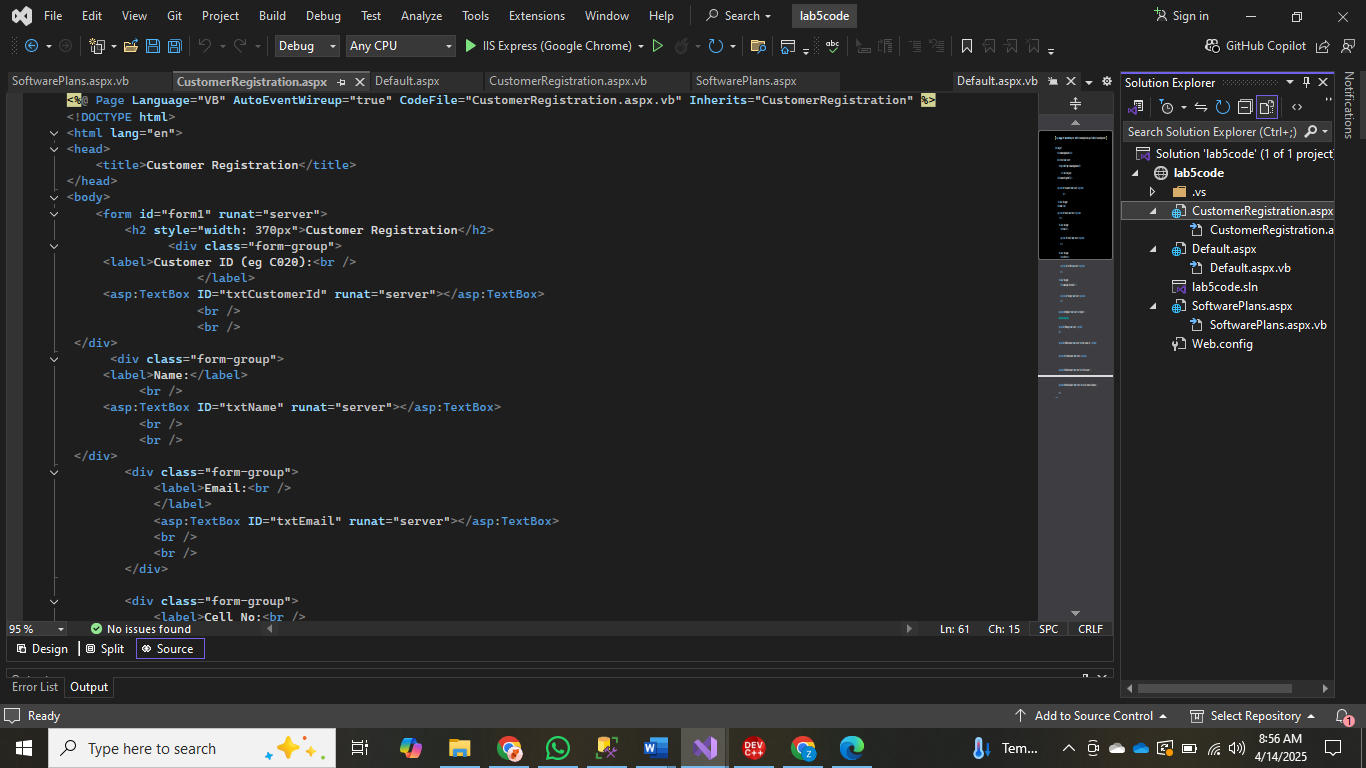

Customer Registration .aspx File
<%@ Page Language="VB" AutoEventWireup="true" CodeFile="CustomerRegistration.aspx.vb" Inherits="CustomerRegistration" %>
<!DOCTYPE html>
<html lang="en">
<head>
    <title>Customer Registration</title>
</head>
<body>
    <form id="form1" runat="server">
        <h2 style="width: 370px">Customer Registration</h2>
        <div class="form-group">
            <label>Customer ID (eg C020):<br /></label>
            <asp:TextBox ID="txtCustomerId" runat="server"></asp:TextBox>
            <br /><br />
        </div>
        <div class="form-group">
            <label>Name:</label><br />
            <asp:TextBox ID="txtName" runat="server"></asp:TextBox>
            <br /><br />
        </div>
        <div class="form-group">
            <label>Email:<br /></label>
            <asp:TextBox ID="txtEmail" runat="server"></asp:TextBox>
            <br /><br />
        </div>
        <div class="form-group">
            <label>Cell No:<br /></label>
            <asp:TextBox ID="txtCellNo" runat="server"></asp:TextBox>
            <br /><br />
        </div>
        <div class="form-group">
            <label>Country Code (2 Letters):<br /></label>
            <asp:TextBox ID="txtCountry" runat="server"></asp:TextBox>
            <br /><br />
        </div>
        <asp:Button ID="btnRegister" runat="server" Text="Register" />
        &nbsp;&nbsp;&nbsp;&nbsp;
        <br />
        <asp:Label ID="lblMessage" runat="server"></asp:Label>
        <br /><br /><br />
        <asp:Label ID="lblDeleteCustomer" runat="server" Text="Enter Customer Id: "></asp:Label>
        <br />
        <asp:TextBox ID="txtDeleteCustomer" runat="server"></asp:TextBox>
        <br /><br />
        <asp:Button ID="btnDeleteCustomer" runat="server" Text="Delete Customer" />
        <br /><br />
        <asp:Button ID="btnSeeAllCustomers" runat="server" Text="See all customers in Database" />
        <br />
    </form>
</body>
</html>

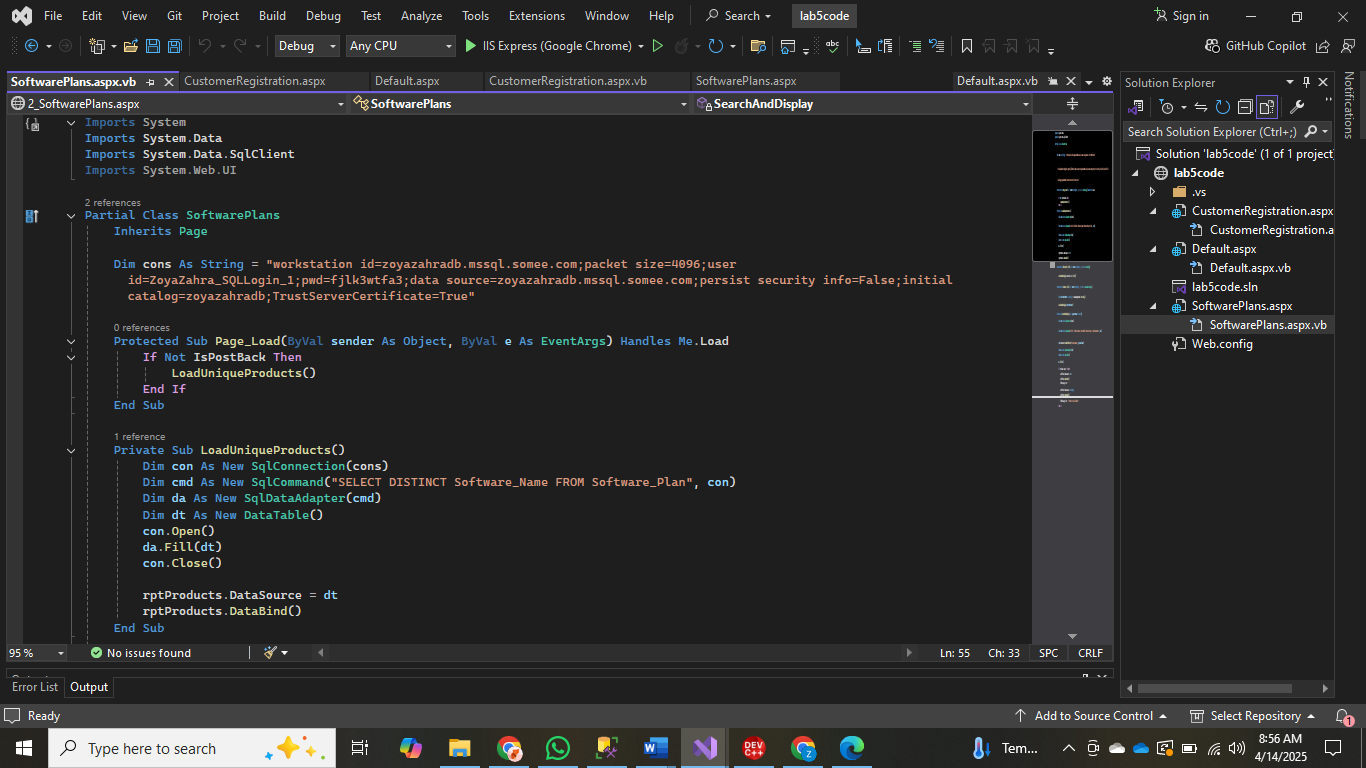

Search Products Code Behind File

Imports System
Imports System.Data
Imports System.Data.SqlClient
Imports System.Web.UI

Partial Class SoftwarePlans
    Inherits Page

    Dim cons As String = "workstation id=zoyazahradb.mssql.somee.com;packet size=4096;user id=ZoyaZahra_SQLLogin_1;pwd=fjlk3wtfa3;data source=zoyazahradb.mssql.somee.com;persist security info=False;initial catalog=zoyazahradb;TrustServerCertificate=True"

    Protected Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) Handles Me.Load
        If Not IsPostBack Then
            LoadUniqueProducts()
        End If
    End Sub

    Private Sub LoadUniqueProducts()
        Dim con As New SqlConnection(cons)
        Dim cmd As New SqlCommand("SELECT DISTINCT Software_Name FROM Software_Plan", con)
        Dim da As New SqlDataAdapter(cmd)
        Dim dt As New DataTable()
        con.Open()
        da.Fill(dt)
        con.Close()

        rptProducts.DataSource = dt
        rptProducts.DataBind()
    End Sub

    Protected Sub btnSearch_Click(ByVal sender As Object, ByVal e As EventArgs)
        SearchAndDisplay(txtSearch.Text.Trim())
    End Sub

    Protected Sub Product_Click(ByVal sender As Object, ByVal e As CommandEventArgs)
        Dim selectedProduct As String = e.CommandArgument.ToString()
        SearchAndDisplay(selectedProduct)
    End Sub

    Private Sub SearchAndDisplay(ByVal productName As String)
        Dim con As New SqlConnection(cons)
        Dim cmd As New SqlCommand("SELECT * FROM Software_Plan WHERE Software_Name = @SoftwareName", con)
        cmd.Parameters.AddWithValue("@SoftwareName", productName)
        Dim da As New SqlDataAdapter(cmd)
        Dim dt As New DataTable()
        con.Open()
        da.Fill(dt)
        con.Close()

        If dt.Rows.Count > 0 Then
            GridView1.DataSource = dt
            GridView1.DataBind()
            lblMessage.Text = ""
        Else
            GridView1.DataSource = Nothing
            GridView1.DataBind()
            lblMessage.Text = "Product not available."
        End If
    End Sub
End Class

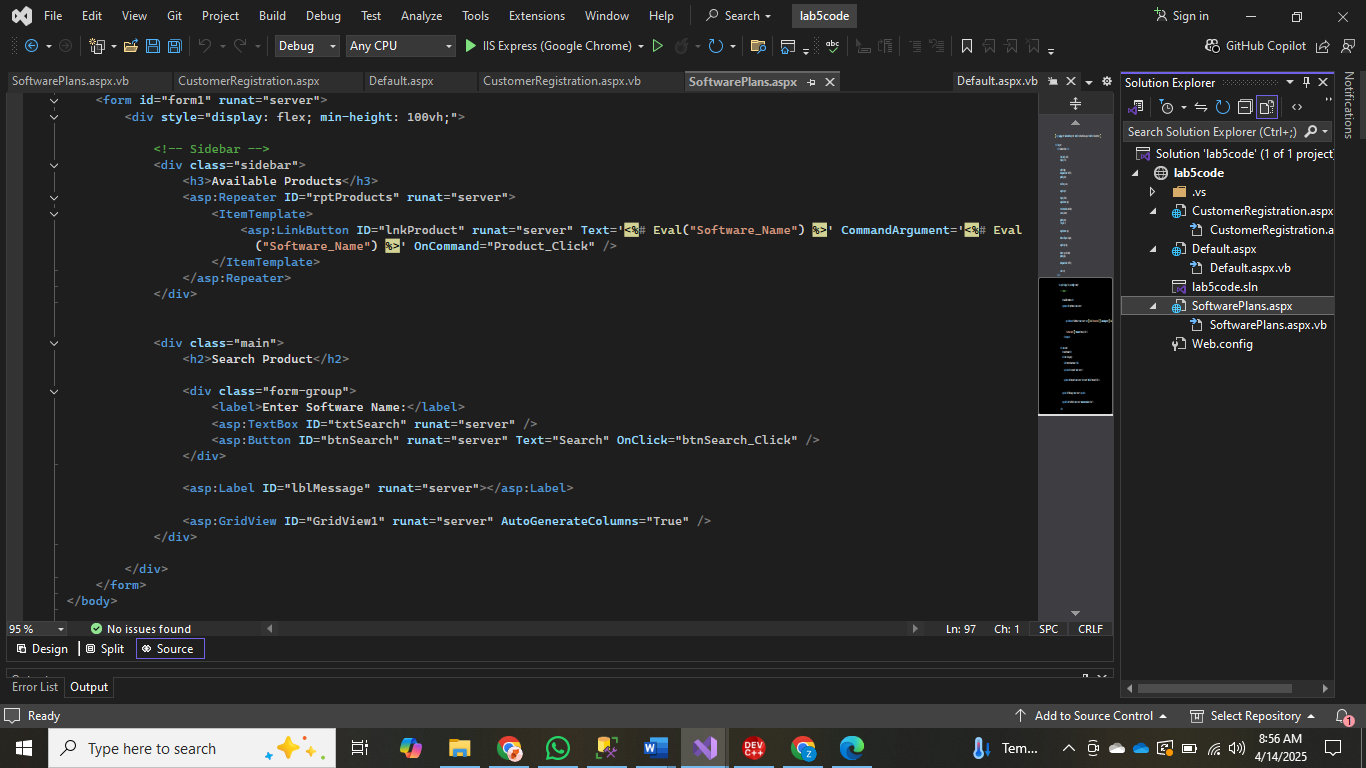

Search Products .aspx File
<%@ Page Language="VB" AutoEventWireup="true" CodeFile="SoftwarePlans.aspx.vb" Inherits="SoftwarePlans" %>

<!DOCTYPE html>
<html lang="en">
<head>
    <title>Software Plans</title>
    <style>
        body {
            font-family: Arial;
            display: flex;
            margin: 0;
        }

        .sidebar {
            width: 200px;
            background-color: #f2f2f2;
            padding: 20px;
            height: 100vh;
            overflow-y: auto;
        }

        .sidebar h3 {
            margin-top: 0;
        }

        .sidebar a {
            display: block;
            margin-bottom: 10px;
            color: blue;
            text-decoration: underline;
            cursor: pointer;
        }

        .main {
            padding: 20px;
            flex-grow: 1;
        }

        .form-group {
            margin-bottom: 15px;
        }

        table {
            border-collapse: collapse;
            width: 100%;
            margin-top: 20px;
        }

        th, td {
            border: 1px solid #ddd;
            padding: 8px;
        }

        th {
            background-color: #f2f2f2;
        }

        #lblMessage {
            color: red;
        }
    </style>
</head>
<body>
    <form id="form1" runat="server">
        <div style="display: flex; min-height: 100vh;">

            <!-- Sidebar -->
            <div class="sidebar">
                <h3>Available Products</h3>
                <asp:Repeater ID="rptProducts" runat="server">
                    <ItemTemplate>
                        <asp:LinkButton ID="lnkProduct" runat="server" Text='<%# Eval("Software_Name") %>' CommandArgument='<%# Eval("Software_Name") %>' OnCommand="Product_Click" />
                    </ItemTemplate>
                </asp:Repeater>
            </div>


            <div class="main">
                <h2>Search Product</h2>

                <div class="form-group">
                    <label>Enter Software Name:</label>
                    <asp:TextBox ID="txtSearch" runat="server" />
                    <asp:Button ID="btnSearch" runat="server" Text="Search" OnClick="btnSearch_Click" />
                </div>

                <asp:Label ID="lblMessage" runat="server"></asp:Label>

                <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="True" />
            </div>

        </div>
    </form>
</body>

</html>

IAD LAB-5: Fully Functional Interface Design for 5th Sem Project-Software Subscription Service

Problem Statement:

Problem Statement

Code Implementation

Homepage Code Behind File

Homepage Default.aspx File

Customer Registration Code Behind File

Customer Registration .aspx File

Search Products Code Behind File

Search Products .aspx File

Sample Output

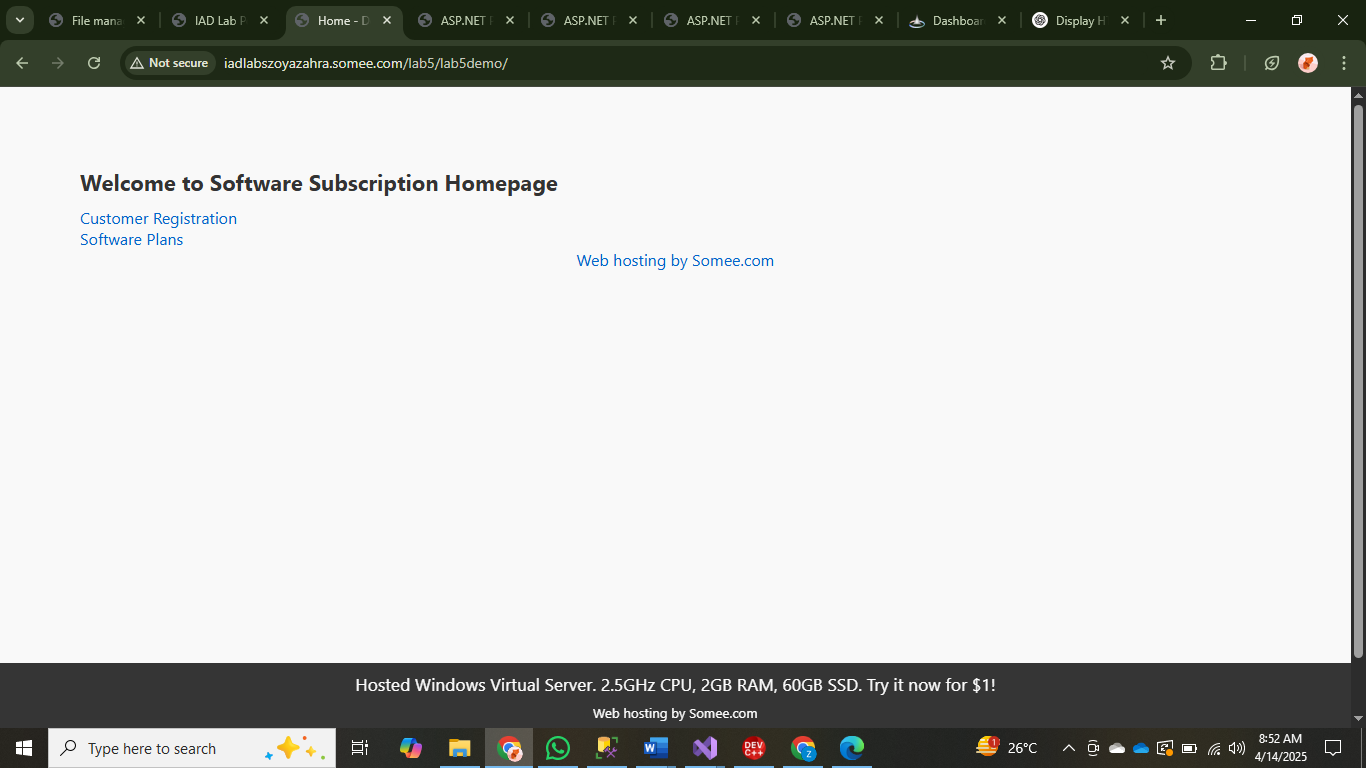

Home Page

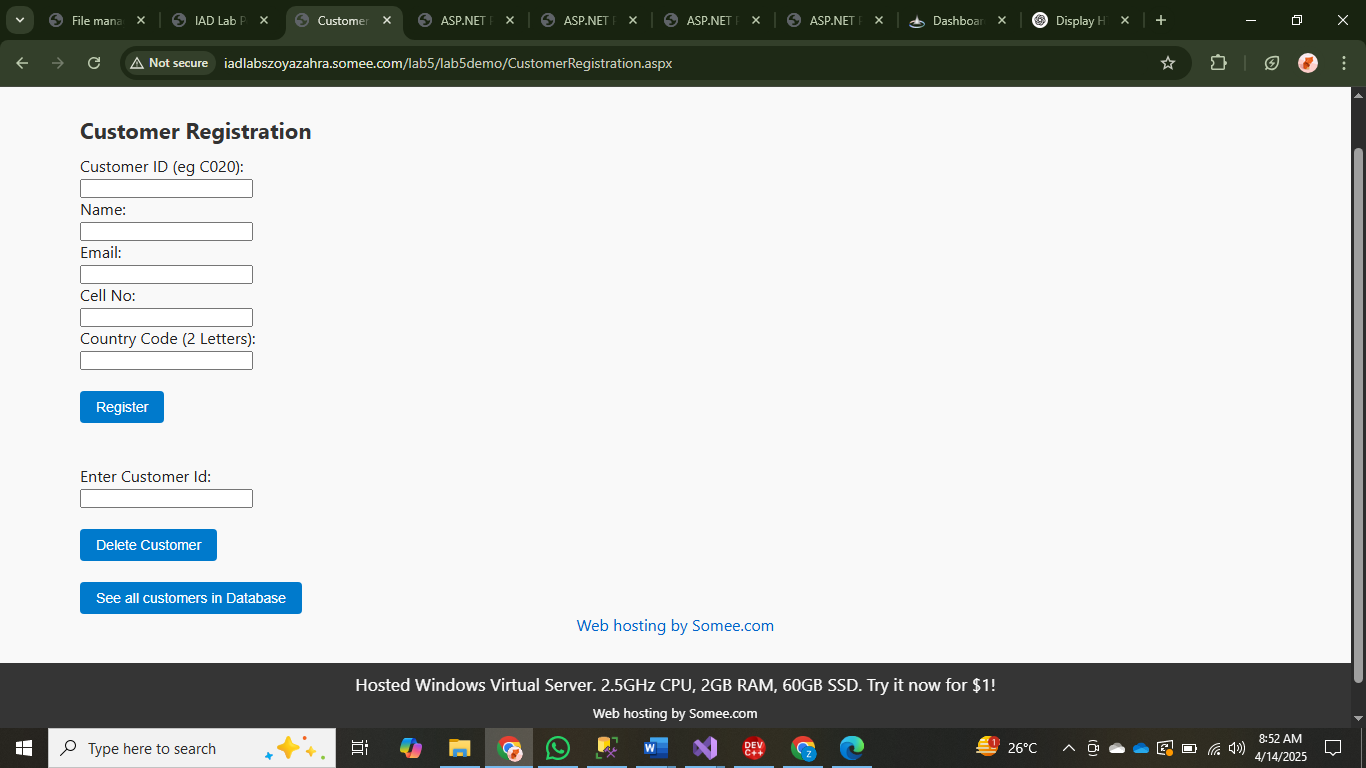

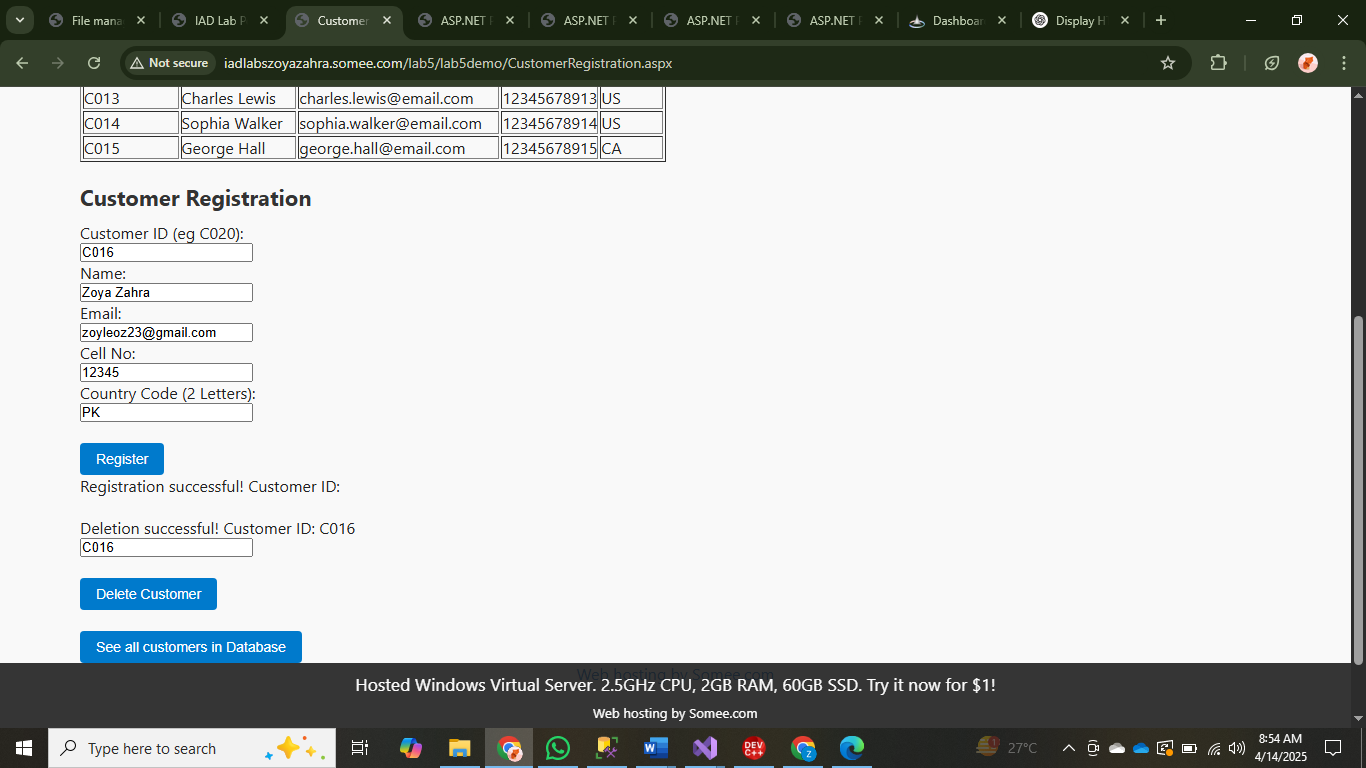

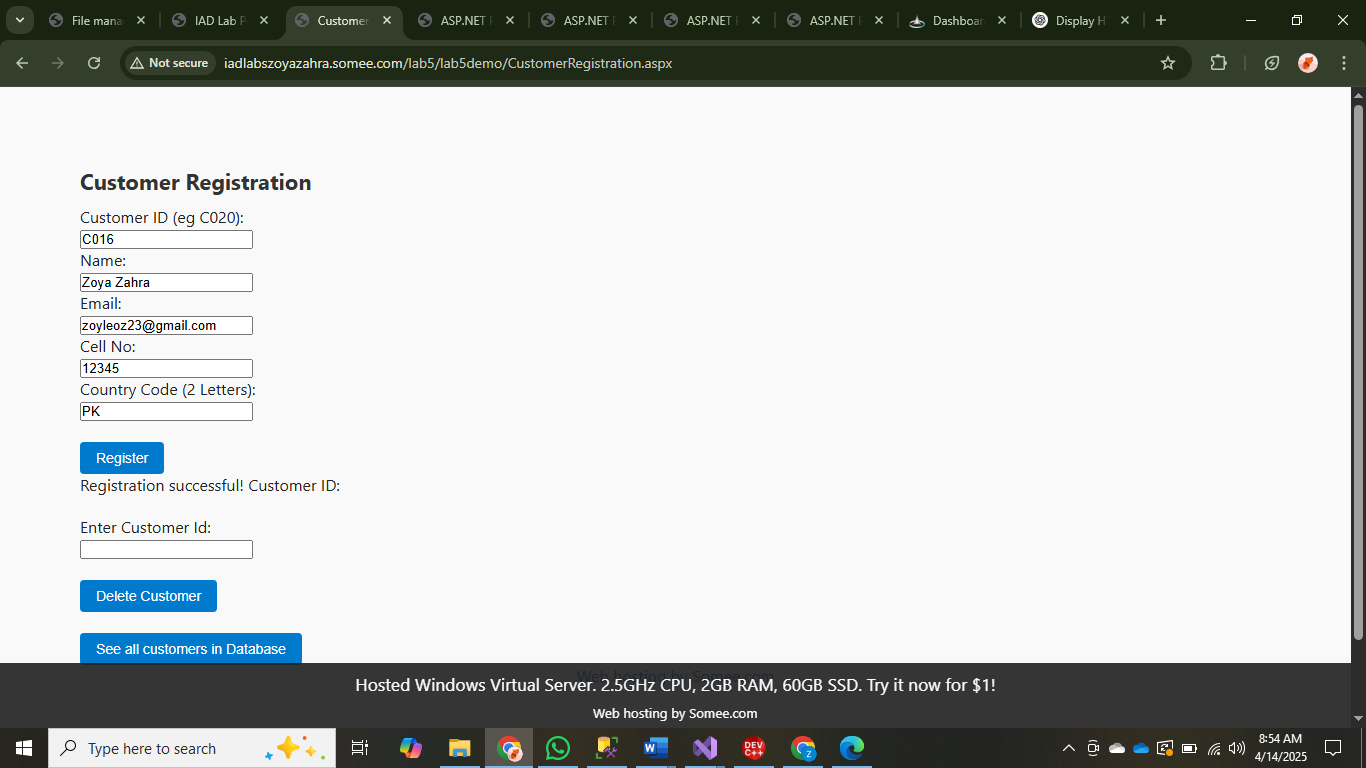

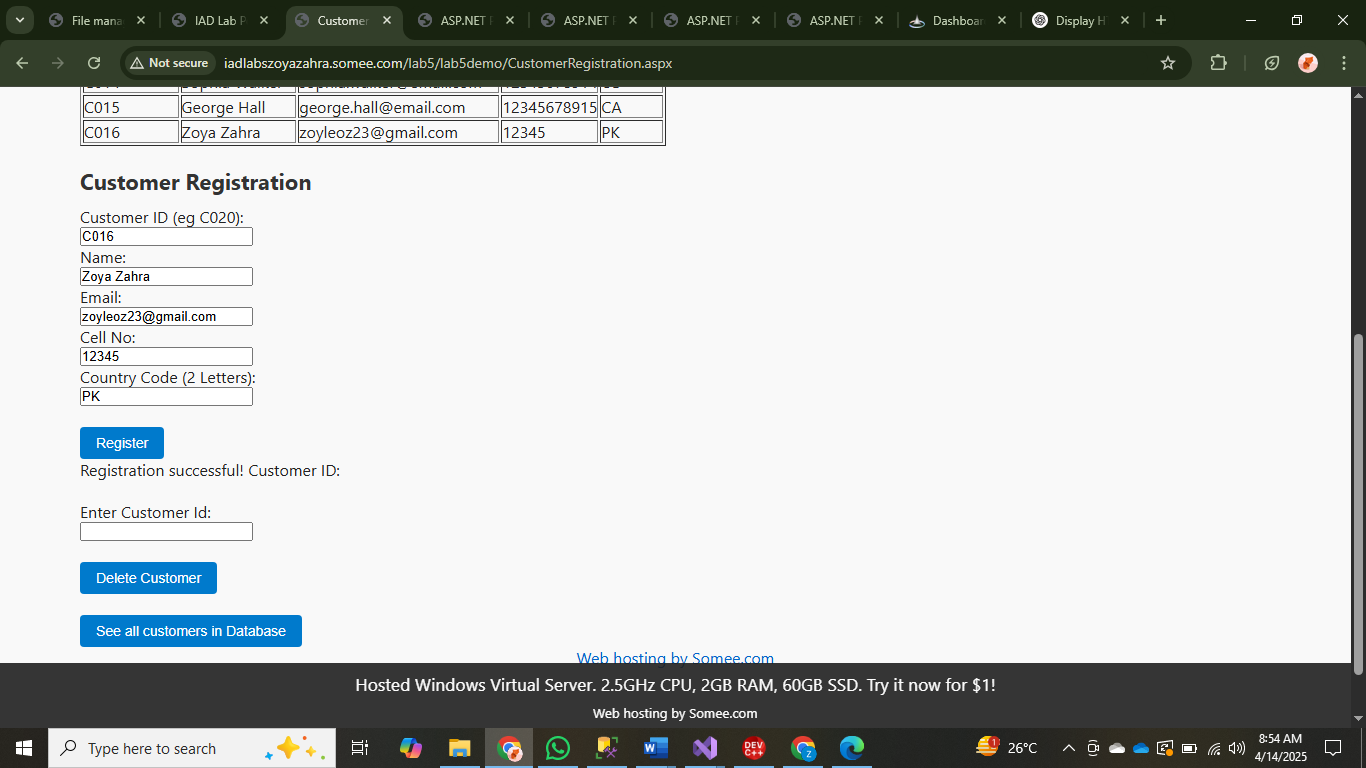

Customer Registration

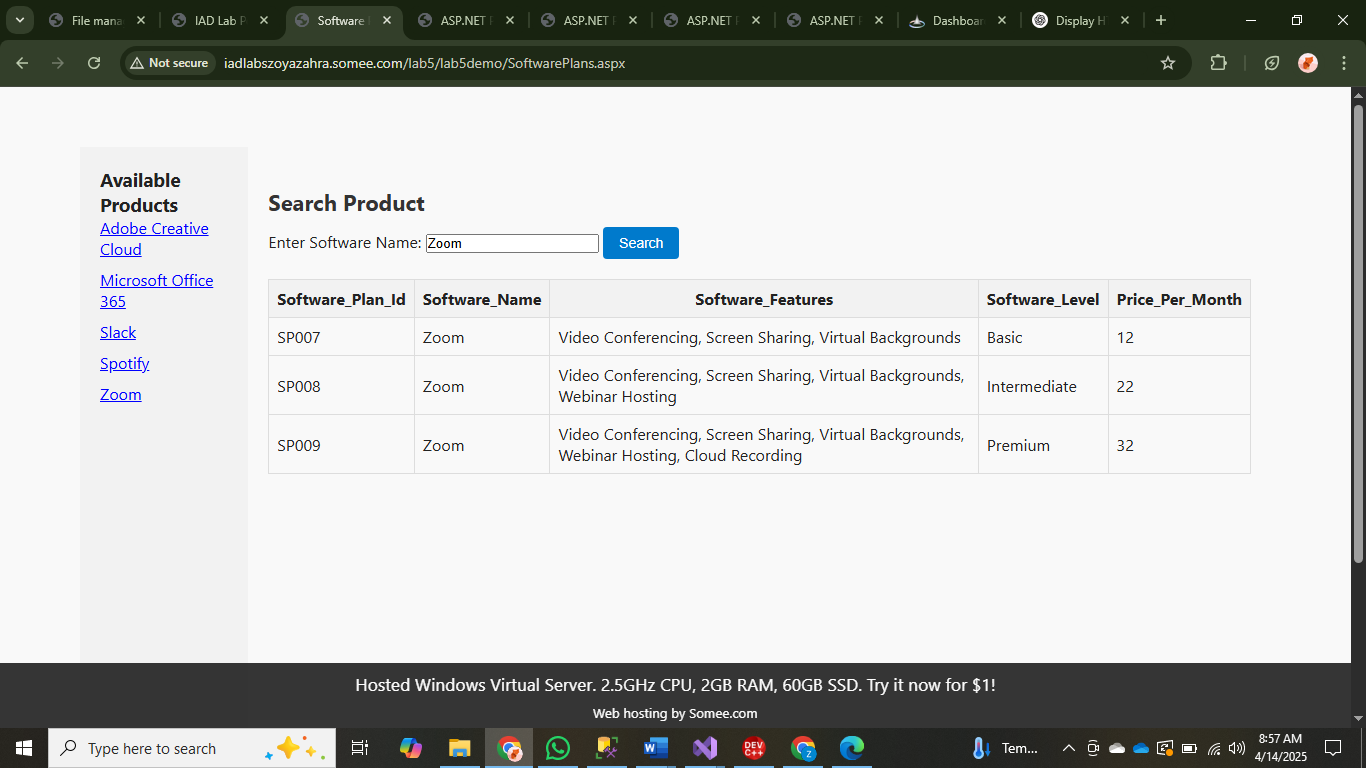

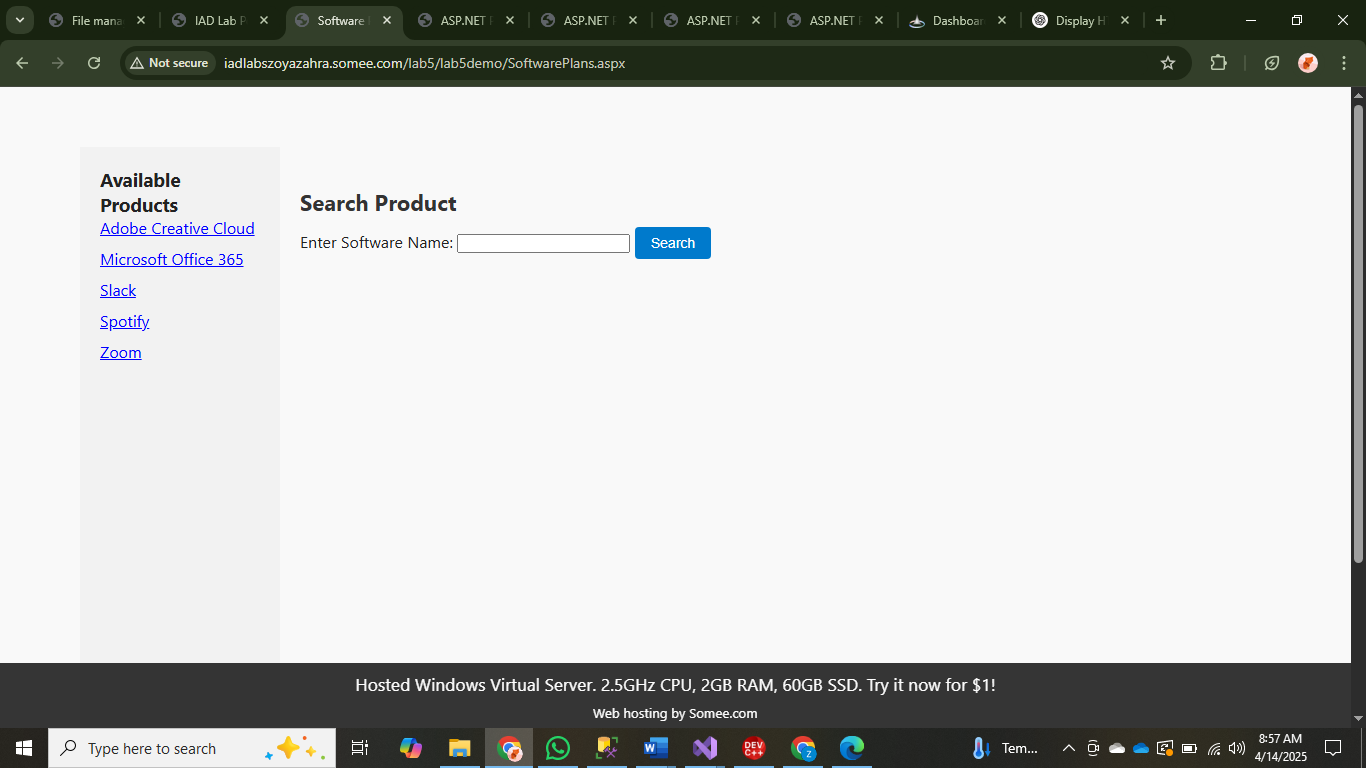

Search Products
